For calibrating varies types of dial indicators, bore gauges, pin gauges, plug gauge, thread
plug gauges, inside micrometers, standard bar, and measuring concentric, thickness,
length of parts.
Easy to operate, by simply moving concentric slide to set distance and to lock position,
then proceed to measuring or calibration.
Full set includes wooden case, operational manual, quality warranty, and JCC calibration
report comply with ISO 9001 measuring traceability & ISO/IEC 17025 accreditation.
Model No.
Direct Calibration
Resolution
Accuracy

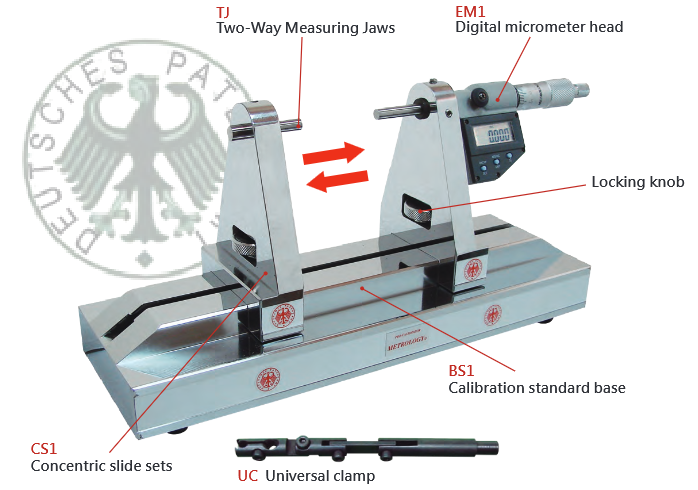

Combination Sets
D&G-9001
0-25mm / 0-1”
-
0.003mm
BS1 + CS1 + EM1 + TJ + UC
D&G-9002
0-25mm / 0-1”
0.001mm / 0.00005”
0.002mm
BS2 + CS2 + EM1 + TJ + UC
D&G-9003
0-50mm / 0-2”
-
0.004mm
BS3 + CS3 + EM2 + TJ + UC
D&G-9004
0-25mm / 0-1”
0.0001mm / 0.000005”
0.001mm
Granite base, slide, probe, display
*Remark: D&G-9004 only has the calibration function of indicator, lever type indicator and cylinder bore gauge. The whole set includes standard components, probe, and 0.1μm high precision digital display.
