- Details
- Category: FOTRIC 320 series
| Model | FOTRIC 321F |
|---|---|
| Thermal Resolution | 256*192 |
| Thermal Sensitivity（NETD) | 60mk(0.06°C) |
| Lens /Field of View | 46.5°x 35° |
| Focus Mode | 0.5 meters focus free |
| AI programmable key | Support |
| Wi-Fi & Bluetooth | Yes, for data transfer & Headset. |
| Build-in digital camera | 8 MP industrial camera |
| Frame Rate | 30Hz |
| Temperature Range | -20 °C to 550°C |
| Measurement Tools | Spot：4 Line：1 Rectangle/Circle：4 |
| Emissivity | Support |
| Display Screen | 3.5 inch Touch Screen |
| Palettes | 8 Grey, Iron, Rainbow, Grey-red, Rain, GlowBow, Medical, Prism |
| Storage Card | TF card，64GB |
| On screen Analysis | Support |
| QR-code scan, saved in Tags | Support |
| Remote Control (with AnalyzIR Software) | Support |
| Battery | 3.6V，5000mAh Li-battery |
| Battery operation time | ≥5 hours |
| Operation temperature | -20°C to 50°C |
| Storage temperature | -40°C to 70°C, without battery |
| Drop | Designed for 2 meters drop test. (GB/T 2423.8/IEC 60068-2-32) |
| Weight (include battery) | 730g |
| Enclosure rating | IP54 |
| Warranty | 2 years warranty on camera, 10 years for IR detector. |
- Details
- Category: FOTRIC 320 series

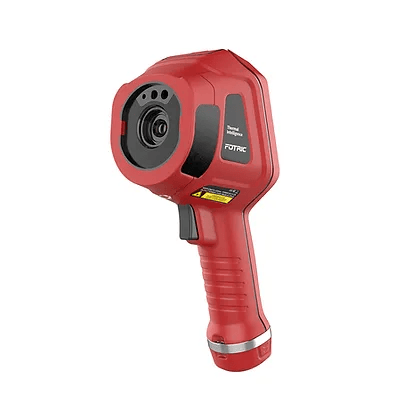

| Model | FOTRIC 322F |
|---|---|
| Thermal Resolution | 320*240 |
| Thermal Sensitivity（NETD) | 60mk(0.06°C) |
| Lens /Field of View | 46.5°x 35° |
| Focus Mode | 0.5 meters focus free |
| AI programmable key | Support |
| Wi-Fi & Bluetooth | Yes, for data transfer & Headset. |
| Build-in digital camera | 8 MP industrial camera |
| Frame Rate | 30Hz |
| Temperature Range | -20 °C to 550°C |
| Measurement Tools | Spot：4 Line：1 Rectangle/Circle：4 |
| Emissivity | Support |
| Display Screen | 3.5 inch Touch Screen |
| Palettes | 8 Grey, Iron, Rainbow, Grey-red, Rain, GlowBow, Medical, Prism |
| Storage Card | TF card，64GB |
| On screen Analysis | Support |
| QR-code scan, saved in Tags | Support |
| Remote Control (with AnalyzIR Software) | Support |
| Battery | 3.6V，5000mAh Li-battery |
| Battery operation time | ≥5 hours |
| Operation temperature | -20°C to 50°C |
| Storage temperature | -40°C to 70°C, without battery |
| Drop | Designed for 2 meters drop test. (GB/T 2423.8/IEC 60068-2-32) |
| Weight (include battery) | 730g |
| Enclosure rating | IP54 |
| Warranty | 2 years warranty on camera, 10 years for IR detector. |
- Details
- Category: FOTRIC 320 series

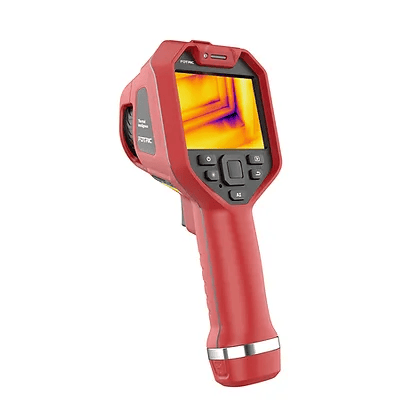

| Model | FOTRIC 322M |
|---|---|
| Thermal Resolution | 160*120 |
| Thermal Sensitivity（NETD) | 60mk(0.06°C) |
| Lens /Field of View | 46.5°x 35°, IFOV:5.15mrad, Manual focus & 0.5 meters focus free |
| Focus Mode | 25°×19°, IFOV:2.73mrad, Manual focus |
| AI programmable key | Support |
| Wi-Fi & Bluetooth | Yes, for data transfer & Headset. |
| Build-in digital camera | 8 MP industrial camera |
| Frame Rate | 30Hz |
| Temperature Range | -20 °C to 120°C; 0 °C to 550°C |
| Measurement Tools | Spot：6 Line：1 Rectangle/Circle：4 |
| Emissivity | Support |
| ROI Alarm | Support |
| Display Screen | 3.5 inch Touch Screen |
| Palettes | 8 Grey, Iron, Rainbow, Grey-red, Rain, GlowBow, Medical, Prism |
| Isotherm/Color Alarms (Above, Below, and in-between) | Support |
| Storage Card | TF card，64GB |
| QR-code scan, saved in Tags | Support |
| Remote Control (with AnalyzIR Software) | Support |
| Battery | 3.6V，5000mAh Li-battery |
| Battery operation time | ≥4 hours |
| Operation temperature | -20°C to 50°C |
| Storage temperature | -40°C to 70°C, without battery |
| Drop | Designed for 2 meters drop test. (GB/T 2423.8/IEC 60068-2-32) |
| Weight (include battery) | 730g |
| Enclosure rating | IP54 |
| Warranty | 2 years warranty on camera, 10 years for IR detector. |
- Details
- Category: FOTRIC 320 series

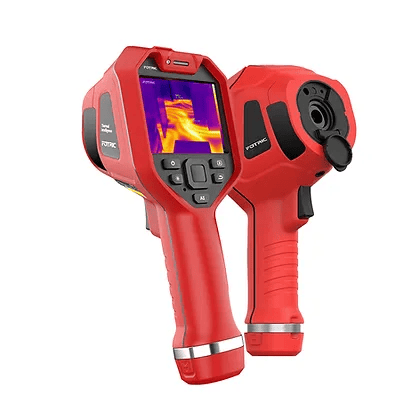

| Model | FOTRIC 323F |
|---|---|
| Thermal Resolution | 528*396 |
| Thermal Sensitivity（NETD) | 40mk(0.04°C) |
| Lens /Field of View | 49°x 36.8° |
| Focus Mode | 0.5 meters focus free |
| AI programmable key | Support |
| Wi-Fi & Bluetooth | Yes, for data transfer & Headset. |
| Build-in digital camera | 8 MP industrial camera |
| Frame Rate | 30Hz |
| Temperature Range | -20 °C to 550°C |
| Measurement Tools | Spot：6 Line：1 Rectangle/Circle：4 |
| Emissivity | Support |
| Display Screen | 3.5 inch Touch Screen |
| Palettes | 8 Grey, Iron, Rainbow, Grey-red, Rain, GlowBow, Medical, Prism |
| Storage Card | TF card，64GB |
| QR-code scan, saved in Tags | Support |
| Remote Control (with AnalyzIR Software) | Support |
| Battery | 3.6V，5000mAh Li-battery |
| Battery operation time | ≥4 hours |
| Operation temperature | -20°C to 50°C |
| Storage temperature | -40°C to 70°C, without battery |
| Drop | Designed for 2 meters drop test. (GB/T 2423.8/IEC 60068-2-32) |
| Weight (include battery) | 730g |
| Enclosure rating | IP54 |
| Warranty | 2 years warranty on camera, 10 years for IR detector. |
