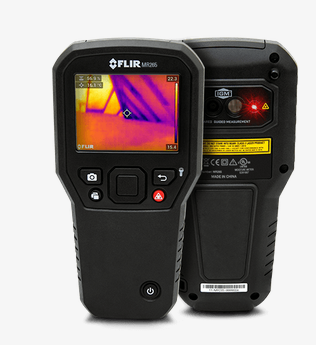

The FLIR MR265 is a professional pin and pinless moisture meter that uses thermal imaging to show you exactly where to look for moisture, air leaks, and insulation voids. The MR265 uses IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging enhancement) technology to quickly scan and target problem areas, allowing for confident measurement, analysis, and problem resolution. Using FLIR Thermal Studio™, you can generate and distribute professional reports with findings and proof of repairs, providing your clients piece of mind that mold, rot, or moisture issues have been handled.
| MSX | Embosses visual details on full resolution thermal image |
|---|---|
| Thermal image palettes | Iron, Rainbow, Arctic, White-Hot, Black-Hot |
| Pin Moisture | Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only |
| Pin Moisture Groups | 11 Material Groups |
| Includes | FLIR MR265, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard |
| Digital Camera | 2MP, 83° FOV (70.5° HFOV x 56° VFOV) |
| Display Type | QVGA (320 × 240 pixels) 2.8 in. color TFT graphical display |
| Field of View [W x H] | Thermal FOV 57° x 44° |
| Image Modes | Thermal, Visual, MSX® |
| Image Update Speed Frequency | 9 Hz |
| Imaging Detector | FLIR Lepton microbolometer |
| Laser Orientation | Single laser pointer to center of thermal image |
| MSX | Embosses visual details on full resolution thermal image |
| Sensitivity | <150 mK |
| Spectral Response | 8 to 14 µm |
| Thermal image minimum focus distance | 10 cm (4 in) |
| Thermal image palettes | Iron, Rainbow, Arctic, White-Hot, Black-Hot |
| Thermal Image Resolution [W x H] | 19,200 pixels (160 × 120) |
| Image Calibration | Automatic with manual lock scale option |
| Measurement Resolution | 0.1 |
| Pin Moisture | Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only |
| Pin Moisture Groups | 11 Material Groups |
| Pinless Measurement Depth | 19 mm (0.75 in) max |
| Pinless Moisture Range | 0 to 100 |
| Response Time Pin Mode | 750 ms |
| Response Time Pinless | 100 ms |
| Internal Memory | 8 GB |
| Saved Image File format | Radiometric JPEG |
| Stored Image Capacity | 15000 images |
| Auto Power Off | Programmable: off, 5, 10, 20 and 30 minutes |
| Battery | Rechargeable 3.7 V nominal, 5400 mAh LiPo |
| Continuous Run Time | 10 hours maximum |
| Typical Usage | 4 work weeks |
| Includes | FLIR MR265, FLIR MR02 Standard Pin Probe, quick start guide, international USB charger, USB cable, and lanyard |
| Packaging Size | 28.5 × 14.5 × 10.5 cm (11.2 × 5.7 × 4.7 in) |
| Agency Approvals | CE, RCM, FCC Part 15B, UKCA |
| Certification Standards | EN 61326 (EMC), EN 60825-1 Class 2 (laser), IEC61010-1 |
| Drop test | 2 m (6.6 ft) |
| Warranty | 10 year |
