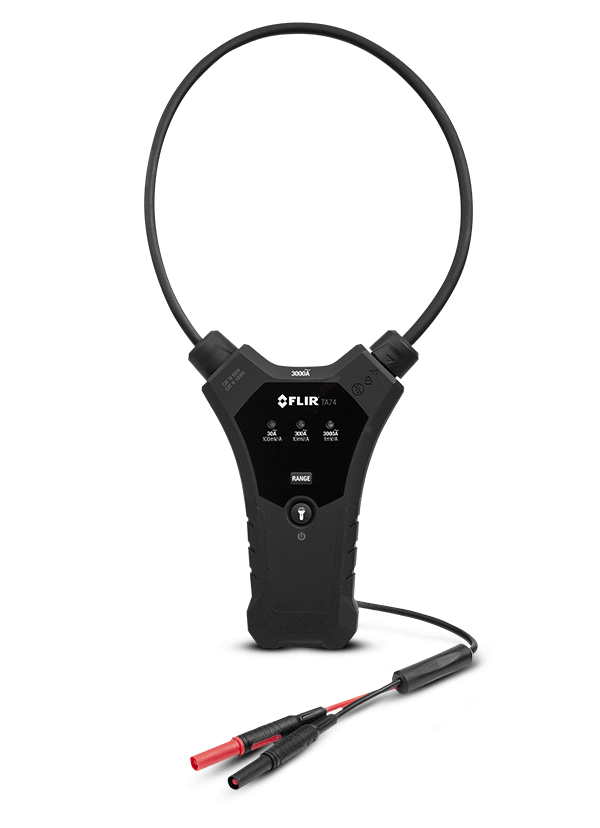

The FLIR TA74 expands possibilities, eliminates obstacles, and provides the greatest results from your current meter. The narrow, 18-inch-long flexible coil clamp and locking mechanism enable you to take measures in confined or problematic spaces, making it excellent for multiple conductor measurements, double-wrapping requirements, and deeper access. The connector is a conventional banana plug, and the output is a voltage signal, making it compatible with most DMMs and clamp meters, regardless of manufacturer.
| Agency Approvals | CE, UL |
|---|---|
| Drop test | 9.8' (3m) |
| Safety Rating | CAT IV 600V,CAT III 1000V |
| Standards | EN61010‐1, EN61010‐2‐032 |
| Warranty | Limited lifetime with registration |
| Probe Length | 73" (1.9m) |
| Work light | Two white LEDs |
| AC Current Bandwidth | 45Hz – 500Hz (sine wave) |
| AC Current Ranges and Resolution | 30.00A, 300.0A, 3000A |
| Basic AC current accuracy (full scale) | ± 3.0% + 5 digits |
| Flex Coil Diameter | 0.3" (7.5mm); |
| Flex Coil Length | 18" (45 cm) |
| Flex Coil Tip Diameter | 0.5" (13mm) |
| Max Conductor Diameter Capacity | 4.7" (12cm) |
| Maximum AC current | 3000A AC |
| Measurement Rate | 1.5 samples per second, nominal |
| Min Reqs for Meter Comp with TA72 | AC voltage function 4000 count display 1mV resolution |
| Positional Error [distance from optimum] | 1.4" (35mm) 1.0% / 2.0" (50mm) 1.5% / 2.4" (60mm) 2.0% |
| Power Supply | (2) 1.5V "AAA" |
