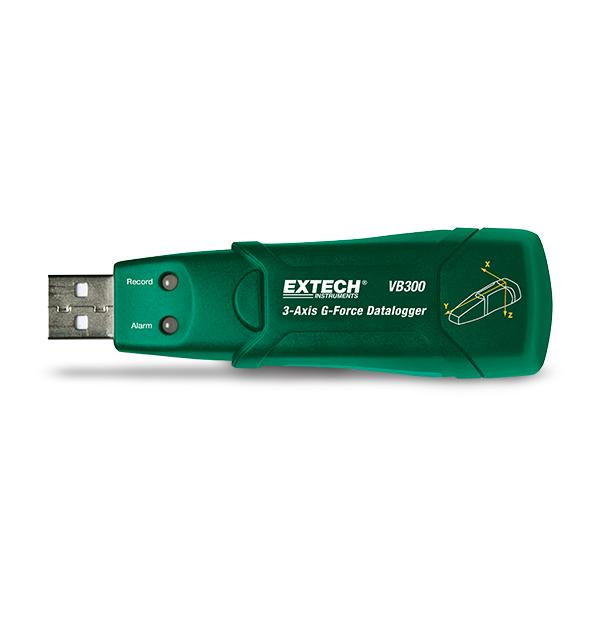

The VB300 is a G-Force datalogger that measures and times 3-axis shock and vibration (acceleration) values within a ±18g measuring range. This gadget will record 3-axis g-force and related peaks in order to provide a history of shock and vibration events. Includes magnetized/bolt-on mounting base, 3.6V lithium battery, and Windows-compatible analysis software.
| Acceleration | ±18g |
|---|---|
| Acceleration Basic Accuracy | ±0.5g |
| Acceleration Max Resolution | 0.00625g |
| Data Format | Time stamped peak acceleration, average and peak vector sum |
| Datalogging Interval | 500 ms to 24 hours (software) |
| Frequency Bandwidth | 0 to 60Hz |
| Memory | 4Mbit Flash; 112028 Motion Detection samples per axis, or 168042 Normal samples |
| Sampling Rate | 200Hz |
| Sensor Type | MEMS semiconductor |
| Certifications | CE |
| Dimensions | 3.7 × 1.1 × 0.8" (95 × 28 × 21mm) |
| Power | 1 × 3.6V Lithium battery |
| Warranty | 2 years |
| Weight | 1oz (20g) |
