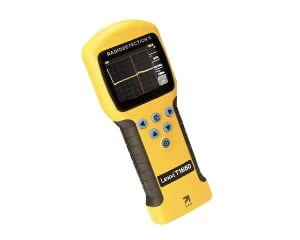

The Lexxi T1660™ provides unsurpassed performance, usability, and economy. Combining hand-held ergonomics with a TDR engine, this fault locator provides technicians with the tools they need to locate defects fast, with 1% distance accuracy and resolution.

KEY FEATURES

Large, color display

1% fault location accuracy

0.5m dead zone

6km, 19000’ maximum range

7m, 23’ minimum display range

11 range settings

Operates from Alkaline or NiMH rechargeable batteries

12 hours typical battery lifetime (alkaline)

User selectable Power Down time

Selectable cable impedance

VoP adjustable from 1% to 99%

100Ω Twisted Pair Alligator Clip cables included as standard

Specifications

Ranges:	Meters: 7, 15, 30, 60, 120, 250, 500, 1000, 2000, 3000, 6000 Feed: 20, 50, 100, 200, 400, 800, 1600, 3200, 9400, 10000, 20000
Range Selection:	Manual range control
Accuracy:	1% of selected range*
Display	328x256 pixel 3.5” color backlit LCD
Resolution	Approx 1% of range
Velocity Factor, VoP:	Adjustable from 1% to 99%
Output Pulse:	5V peak to peak - Into open circuit
Output Impedance::	Selectable 25, 50, 75 & 100 ohms
Output Pulse Width:	3ns to 3ms - Automatic with range
Scan Rate:	2 scans/second
Batteries:	Six AA (LR6/R6) Alkaline or NiMH cells
Battery Life:	12 hours typical, continuous operation - Alkaline batteries
Voltage Protection:	600VAC Category III, 300VAC Category IV, 250VAC. Lexxi T1660 with Mains Blocking Filter Lexxi T1660 with all other connectors and Plug-In Module options
Power Down:	Selectable 1, 3, 5, 10, 15 minutes or disabled
Operating Temp:	-10. to 50.C, 14. to 122.F
Storage Temp:	-20. to 70.C, -4. to 158.F
Dimensions:	250x100x55mm, 9.8x4x2.2”
Weight	600g, 1.3lb
Standards:	EMC BS/EN 61326-1
Water/Dust Proof:	IP54
