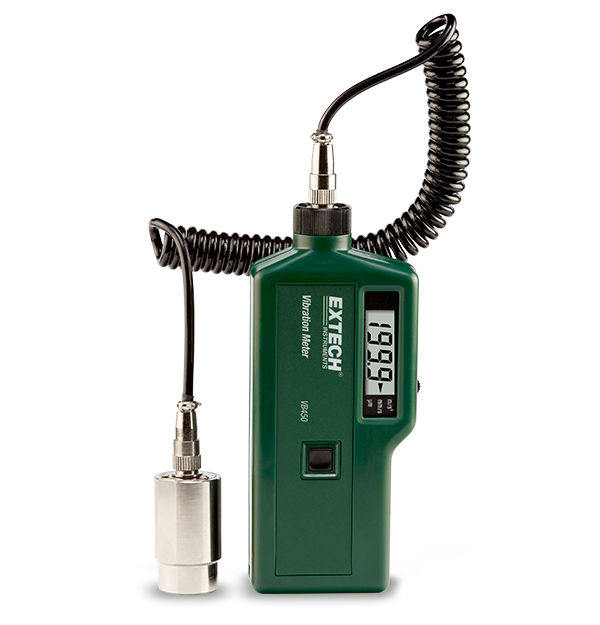

The VB450 is a handy, small Vibration Meter that measures vibration levels in industrial machines. Misalignment, improper balancing, structural constraints, and other reasons can all contribute to undesirable vibration increases. The VB450 has a wide frequency range (10Hz to 1500Hz) and measures displacement, velocity, and acceleration. Includes remote sensor, magnetic mount, 9V battery, wrist strap, and protective case.
| Acceleration | 0.1 to 199.9 m/s² |
|---|---|
| Acceleration Basic Accuracy | ±(5% of reading + 1 digit) |
| Acceleration Max Resolution | 0.1m/s² |
| Displacement | 1 to 1999 µm |
| Displacement Basic Accuracy | ±(5% of reading + 1 digit) |
| Displacement Max Resolution | 1 µm |
| Velocity | 0.1 to 199.9mm/s |
| Velocity Basic Accuracy | ±(5% of reading + 1 digit) |
| Velocity Max Resolution | 0.1mm/s |
| Certifications | CE |
| Dimensions | 7.3 × 2.7 × 1.2" (185 × 68 × 30mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 8.1oz (230g) |
