IMI-AF Series (Autofocus)

Details
Category: Image Measuring Instrument

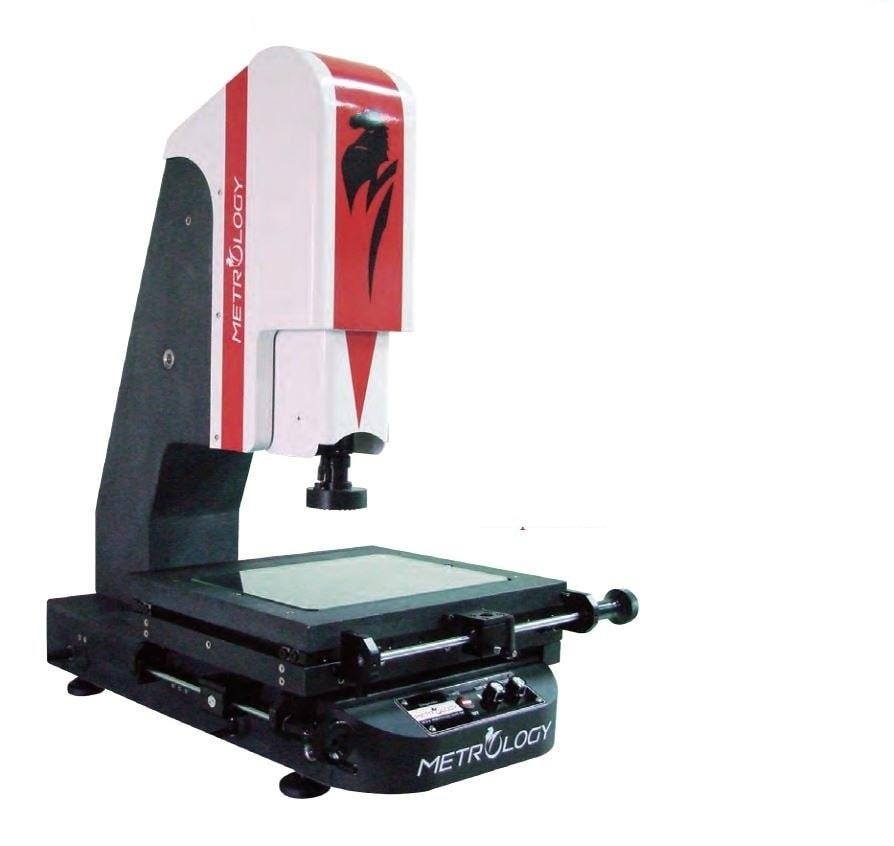

IMI-AF Series (Autofocus)

  • IMI-TOP series, The whole machine granite structure design, better performance, longer life, a new generation of humanized measurement software, stronger functions and higher precision, precision optical measuring instruments made with the combination of precision mechanics, electronics, and optical measuring systems.

  • Best suitable for precision manufacturing industries such as the following: Molding, machining parts, tools, screws, gears, automobiles, watches, machines, aerospace parts, semi-conductor, rubber, plastic, auto lathe machining, precision spring, and etc.

  • IMI-TOP series is great for design & development, QC inspections, and educational purpose in schools.

  • IMI-TOP series is design specifically to measure length, angles, radius, points, line, circle, distance, and other 2D/3D geometric element measuring requirements. Magnified projection image for inspection and comparison of the workpiece contour and surface shape.

  • OIMI-TOP series machine structure are made with combination of precision granite parts, linear or roller bearings slide, high precision linear scale, high resolution lens, color camera, image measuring software. The exceptional quality is your number 1 choice for workshop inspection and QC department examination.



    • Model No. Measuring Range (XY)
    IMI-AF200 200*100*150mm
    IMI-AF300 300*200*150mm
    IMI-AF400 400*300*200mm
    IMI-AF500 500*400*200mm

    *Z axis height can be customized according to requirements



    Technical Specifications

    Resolution : 0.001mm/0.00005” (X-Y-Z axis high accuracy linear scale)
    Measuring Accuracy : ±(3+L/200) μm (X, Y Axis)
    Main structure: XY-axis DIN 00 grade granite measuring table & Z axis arm type granite column
    Transmission system: 3-axis cross linear ball slide and toothless screw drive module
    Electronic system: Z-axis AC servo motor speed control system and controller
    Image system: 1/3” 0.41M pixels high resolution CCD color camera
    Image magnification: 25X-250X
    Focus system: Z axis electric motor & software autofocus system
    Optical system: 0.7-4.5X continuous zoom ultra-low distortion optic lens.
    Illumination system: High brightness adjustable LED surface and transmission parallel light
    Computer system: Computer with 21.5”LCD color monitor, keyboard, mouse
    Software system: Jingstone Metrology 2.5D image measuring system.
    Measuring result output: Word, Excel, TXT, DXF, SPC
    Standard Accessories: Calibration plate, measurement software, dongle, operation manual
    Optional Accessories: Steel instrument working table cover with OA desktop
