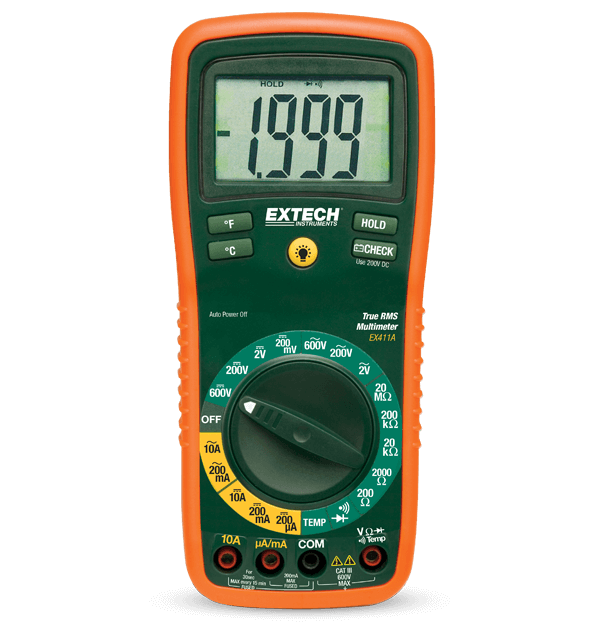

The Extech EX411A has numerous functionalities, allowing you to bring one meter into the field rather of several. The manual-ranging EX411A measures AC/DC voltage and current, resistance, diode, and continuity with ±0.5% basic accuracy. The unit can measure current as low as 0.1 µA and has input fuse safety and alerts for misconnections. A Type K thermometer is included for surface and air temperature measurements. Includes CAT III test leads, a stand, a hanging strap, a holster with built-in test lead storage, a Type K bead wire temperature probe, and one 9-volt battery.
| AC Current | 0.1mA to 10A |
|---|---|
| AC Current Basic Accuracy | ±0.5% |
| AC Voltage | 1mV to 600V |
| AC Voltage Basic Accuracy | ±0.3% |
| Continuity | Yes |
| DC Current | 0.1µA to 10A |
| DC Current Basic Accuracy | ±0.5% |
| DC Voltage | 0.1mV to 600V |
| DC Voltage Basic Accuracy | ±0.5% |
| Diode Test | Yes |
| Resistance | 0.1Ω to 20MΩ |
| Temperature (Type K) Max Resolution | -4 to 1382°F (-20 to 750°C) |
| True RMS | Yes |
| Certifications | CE, NIST |
| Dimensions | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 0.75lbs (342g) |
