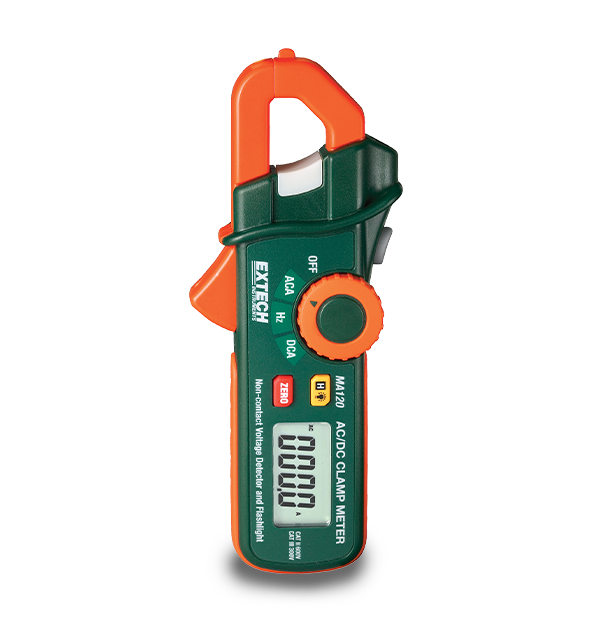

The MA120 is a 200 amp AC/DC micro clamp meter with an integrated AC voltage detector and LED flashlight. The meter measures frequency up to 1 kHz with 0.01Hz resolution and includes auto ranges, auto power off, and data hold modes. Comes with a year warranty, two AAA batteries, and a protective case.
| AC Current | 200A |
|---|---|
| AC Current Basic Accuracy | ±3.0% |
| AC Current Max Resolution | 100mA |
| DC Current | 200A |
| DC Current Basic Accuracy | ±3% |
| DC Current Max Resolution | 0.1A |
| Frequency | 1kHz |
| Frequency Max Resolution | 0.01Hz |
| Jaw Size | 0.7" (18mm), conductors up to 300MCM |
| Non-Contact Voltage (NCV) Detector | 120/240VAC |
| Certifications | CE |
| Dimensions | 6.5 × 2.6 × 1.3" (164 × 65 × 32mm) |
| Display | 2000-count segment LCD with backlighting |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATII - 600V, CATII - 300V |
| Warranty | 2 years |
| Weight | 6.2oz (176g) |
