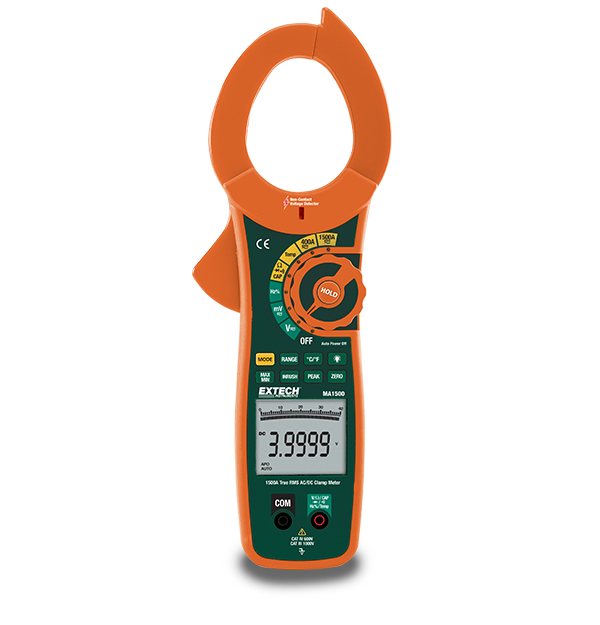

The MA1500 is a 1500 amp True RMS AC/DC clamp meter. 2.0 in. (52mm) jaw size for conductors up to 500MCM, with True RMS for precise readings of non-sinusoidal waves. Additional features include Relative Mode for Capacitance Zero and Offset Adjustment, Data Hold, Peak Hold, MIN/MAX, Auto Power Off, and an Inrush function that captures transients during motor startup. The kit includes test leads, a Type K bead wire temperature probe, a 9V battery, and a carrying box.
| AC Current | 400.00A, 1500.0A |
|---|---|
| AC Current Basic Accuracy | ±(2.8% of reading + 30 digits) |
| AC Current Max Resolution | 0.01A |
| AC Voltage | 400.00mV, 4.000V, 40.00V, 750.0V |
| AC Voltage Basic Accuracy | ±(1.0% of reading + 30 digits) |
| AC Voltage Max Resolution | 0.01mV |
| Capacitance | 400.00nF, 4000nF, 40.00µF, 400.0µF, 4.000mF, 20.00mF, 40.00mF |
| Capacitance Max Resolution | 0.01nF |
| Continuity | Yes |
| DC Current | 400.00A, 1500.0A |
| DC Current Basic Accuracy | ±(2.5% of reading + 30 digits) |
| DC Current Max Resolution | 0.01A |
| DC Voltage | 400.00mV, 4.0000V, 40.000V, 1000.0V |
| DC Voltage Basic Accuracy | ±(0.1% of reading + 4 digits) |
| DC Voltage Max Resolution | 0.01mV |
| Diode Test | Yes |
| Frequency | 40Hz to 40MHz |
| Frequency Basic Accuracy | ±(0.3% of reading + 2 digits) |
| Frequency Max Resolution | 0.001Hz |
| Jaw Size | 2.0" (52mm), conductors up to 500MCM |
| Resistance | 400.00Ω, 4.0000kΩ, 40.000kΩ, 400.00kΩ, 4.0000ΜΩ, 40.000MΩ |
| Resistance Max Resolution | 0.01Ω |
| Temperature (Type K) Max Resolution | -148 to 1832°F (-100 to 1000°C) |
| Temperature (Type N) | ±(1% of reading + 4.5°F/2.5°C) |
| Temperature (Type N) Basic Accuracy | 0.1°F/°C |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 11.6 × 4.1 × 1.9" (294 × 105 × 47mm) |
| Display | 40000/4000-count segment LCD with bargraph and backlighting |
| Power | 1 × 9V battery |
| Safety Category | CATIV - 600V |
| Warranty | 2 years |
| Weight | 18.9oz (536g) |
