KEY FEATURES
Android platform interface .
384x288 resolution.
40 mK sensitivity.
0.5 meters focus-free feature..
49-degree wide-angle lens.
Import the data into AnalzyIR software with WiFi.
TECHNICAL SPECS
| Model |

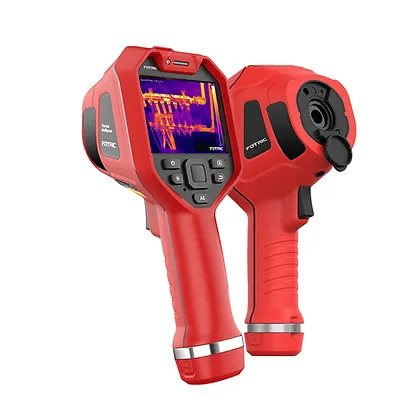

FOTRIC 326F |
| Infrared Resolution |
768*576 |
| Thermal Sensitivity（NETD) |
40mk(0.04°C) |
| Lens /Field of View |
49°x 36.8° |
| Focus Mode |
0.5 meters focus free |
| AI programmable key |
Support |
| Wi-Fi & Bluetooth |
Yes, for data transfer & Headset. |
| Build-in digital camera |
8 MP industrial camera |
| Frame Rate |
30Hz |
| Temperature Range |
-20 °C to 650°C |
| Measurement Tools |
Spot：6 Line：1 Rectangle/Circle：4 |
| Emissivity |
Support |
| ROI Alarm |
Support |
| Display Screen |
3.5 inch Touch Screen |
| Palettes |
8 Grey, Iron, Rainbow, Grey-red, Rain, GlowBow, Medical, Prism |
| Storage Card |
TF card，64GB |
| On screen Analysis |
Support |
| QR-code scan, saved in Tags |
Support |
| Remote Control (with AnalyzIR Software) |
Support |
| Battery |
3.6V，5000mAh Li-battery |
| Battery operation time |
≥4 hours |
| Operation temperature |
-20°C to 50°C |
| Storage temperature |
-40°C to 70°C, without battery |
| Drop |
Designed for 2 meters drop test. (GB/T 2423.8/IEC 60068-2-32) |
| Weight (include battery) |
730g |
| Enclosure rating |
IP54 |
| Warranty |
2 years warranty on camera, 10 years for IR detector. |
