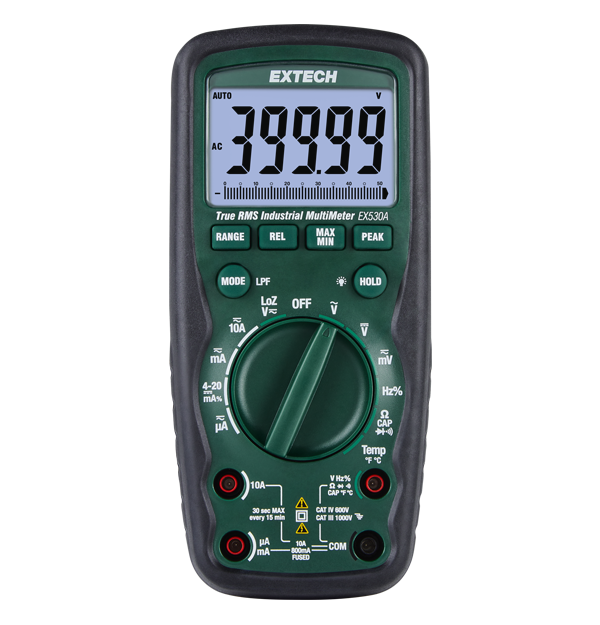

The EX530A multimeter is suitable for usage in the outdoors, on boats, and in any severe industrial environment. Waterproof to IP67 requirements, it has a double-molded casing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It monitors AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA-20 mA, and duty cycle. Other features include ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold, and 1000 V input protection for all operations. Comes with double-molded test leads, type K thermocouple -45°C to 760°C (-50°F to 1400°F), and bead wire temperature probe -20°C to 250°C.
| AC Current | 0.1 µA to 10 A |
|---|---|
| AC Voltage | 1 mV to 1000 V |
| Capacitance | 0.01 nF to 99.99 mF |
| Continuity | Yes |
| DC Current | 0.1 µA to 10 A |
| DC Voltage | 0.1 mV to 1000 V |
| Duty Cycle | 0.1 to 99.9% |
| Frequency | Electrical: 0.001 Hz to 10 MHz, Electronic: 0.01 Hz to 1 kHz |
| Resistance | 0.01 Ω to 50 MΩ |
| Temperature (Type K) Max Resolution | -45°C to 760°C (-50°F to 1400°F) |
| True RMS | Yes |
| Certifications | CE, UL |
| Dimensions | 183 mm × 83 mm × 55 mm (7.1 in × 3.2 in × 2.1 in) |
| Display | 50,000-count segment LCD |
| IP Rating | IP67 |
| Power | 1 × 9 V battery |
| Safety Category | CAT IV-600 V |
| Warranty | 3 years |
| Weight | 380 g (13.4 oz) |
