- Details
- Category: Optical Flats/ Special Measuring Gauge
| Measuring range： | Diameter 3~35mm Length 5~150mm Cylindrical workpieces |
|---|---|
| Material of measure roller： | Hardened tool steel HRC58~62 Rotation accuracy ≦3μm |
- Details
- Category: Optical Flats/ Special Measuring Gauge

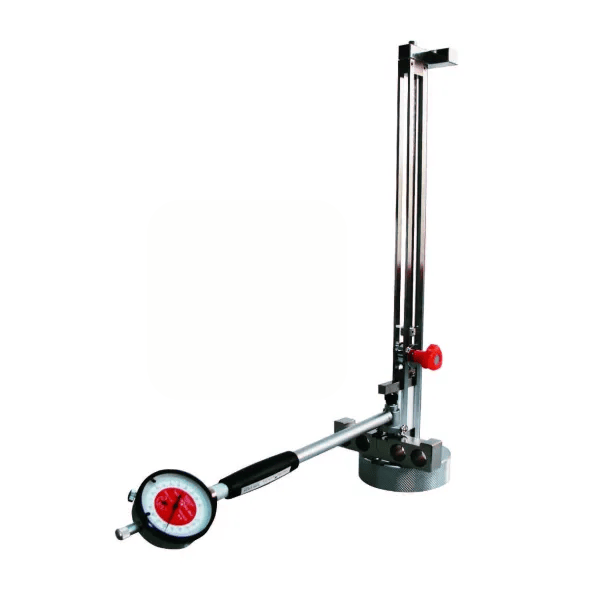

For dimension set zero & calibration of bore gauge.
| Model No. | Set Range | Uncertainty of measurement |
|---|---|---|
| BGC-9200 | 0-200mm | MAX: 0.002mm |
| BGC-9300 | 0-300mm | |
| BGC-9600 | 0-600mm |
*Optional: Standard gauge block
- Details
- Category: Optical Flats/ Special Measuring Gauge
For inspecting parallelism, flatness of workpieces. Inverted for measurements of height, depth, steps without datum faces. Polished chrome steel frame.
| Model No. | Measuring Base | Flatness |
|---|---|---|
| MG-9001 | Φ95mm | 0.002mm |
| MG-9002 | Φ150mm | 0.003mm |
Able to expand double probes of measuring function, for measuring workpiece actual thickness.
- Details
- Category: Optical Flats/ Special Measuring Gauge
| Model No. | Measuring Range | Graduation | Remark |
|---|---|---|---|
| CS-9000 | Indicator 0-3mm | 0.01mm | Full set with indicator, measuring anvil & extension bar |
| With extension measuring bar 60-500mm |
