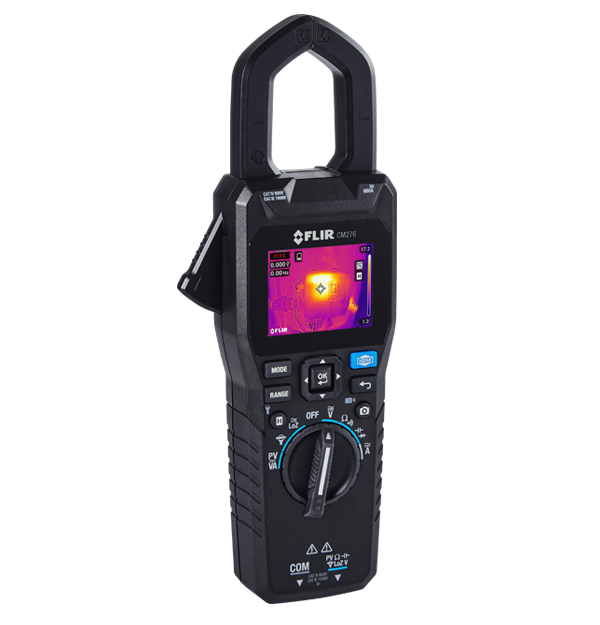

The FLIR CM276 clamp meter uses thermal imaging and electrical measurement to inspect and troubleshoot electrical systems, solar panels, pumps, and motors. The CM276 uses IGM™ (Infrared Guided Measurement) to safely locate hot spots and overloaded circuits. Compatibility with the METERLiNK® app enables the quick and efficient capturing of readings, photos, and videos for analysis, trending, and sharing.
| IR Resolution | 160 × 120 (19,200 pixels) |
|---|---|
| Display Size | 2.4 in, TFT screen |
| Jaw Opening | 35 mm (1.37 in) |
| AC/DC Voltage | Range 1000 V / Basic accuracy ±1.0% |
| Data Logging & Storage | 10 sets of 30K scalar measurements, 100 images |
| Connectivity | Bluetooth® |
| Color Palettes | Iron, rainbow, arctic, white hot, and black hot |
| Display Size | 2.4 in, TFT screen |
| Field of View [V x H] | 44° × 57° |
| Focus | Fixed |
| Image Modes | Thermal MSX (Multi Spectral Dynamic Imaging) Thermal camera only Digital camera only |
| IR Resolution | 160 × 120 (19,200 pixels) |
| Sensitivity | 150 mK |
| Spectral Response | 8µm to 14 µm |
| Thermal Imaging Detector | FLIR Lepton® microbolometer |
| AC/DC Current | Range 600.0 A / Basic accuracy ±2.0% |
| AC/DC Voltage | Range 1000 V / Basic accuracy ±1.0% |
| Auto Range | Yes, with manual range option |
| Capacitance | Range 1000 µF / Basic accuracy ±1.0% |
| Continuity check threshold | ≤30 Ω beeper on, ≥150 Ω beeper off |
| Diode | Range 1.5 V / Basic accuracy ±1.5% |
| Flex Input AC A | Range 3000 A / Basic accuracy ±1.0% |
| Flex Input Frequency Counter | Range: 10.00 kHz / Basic accuracy: ±0.1% |
| Inrush AC Current | Range 600.0 A / Basic accuracy ±3.0% |
| LoZ Mode AC Voltage | Range 60.00 V, 600.0 V, 1000 V / Basic accuracy ±1.0% |
| LoZ Mode DC Voltage | Range 60.00 V, 600.0 V, 1000 V / Basic accuracy ±1.0% |
| Measuring Rate | 3 samples per second |
| PV DC Power | 900 kVA / Basic accuracy ±2.0% |
| PV DC Voltage | Range 1000 V / Basic accuracy ±2.0% with TA82 Range 1500 V / Basic accuracy ±2.0% with TA85/TA86 (optional accessories) |
| Resistance | Range 60 KΩ / Basic accuracy ±1.0% |
| Temperature [IR] | -10°C to 300°C (14°F to 572°F) |
| Temperature Accuracy | ±3°C (5.4°F) or ±3% of the reading; whichever is greater |
| True RMS | Yes |
| VFD AC Current | Range 600.0 A / Basic accuracy ±2.0% |
| VFD AC Voltage | Range 1000 V / Basic accuracy ±1.0% |
| Connectivity | Bluetooth® |
| Data Logging & Storage | 10 sets of 30K scalar measurements, 100 images |
| Storage Media | eMMC 8 GB |
| Auto Power Off | For device: option to OFF, 2, 5, or 10 minutes For worklight only: option to OFF, 5, 15, or 30 minutes |
| Battery | Rechargeable 3.7 V, 5400 mAh LiPo |
| Jaw Opening | 35 mm (1.37 in) |
| Laser Pointer | Type: Class 1 Power: ≤0.39 mW Wavelength: 640 nm to 660 nm |
| Size [L × W × H] | 272 mm × 100 mm × 51.5 mm (10.7 in × 3.94 in × 2.0 in) |
| Weight | 560 g (19.8 oz) |
| Worklights | 2 × white LED |
| Drop test | 2 m (6.5 ft) |
| Emissivity Settings | 0.10 to 1.00 (default is 0.95); select from three presets or set manually |
| IP Rating | IP40 |
| Warranty | 10 year |
