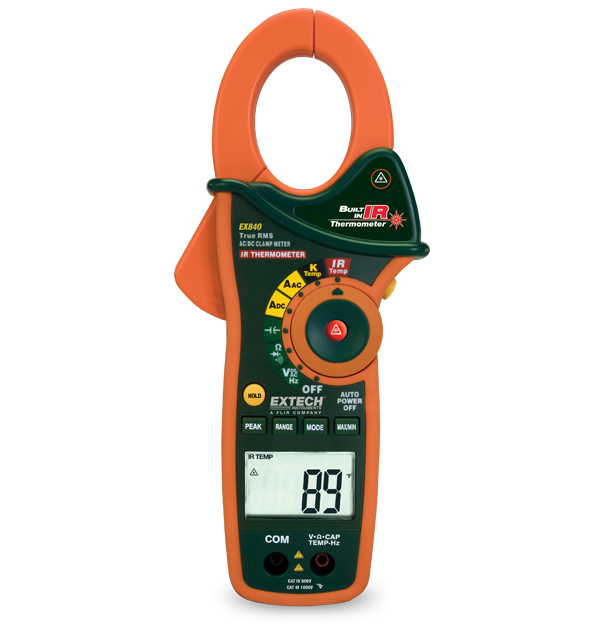

This CAT IV True RMS clamp meter includes an integrated IR thermometer with laser pointer for non-contact surface measurements ranging from -58 to 518 °F (-50 to 270 °C). Clamp measures alternating current up to 1000 amps with a maximum resolution of 0.1 amp. The 1.7-inch jaw accommodates conductors up to 750MCM. Peak hold measures motor inrush currents and other surges. Functions for data storage and automatic power off. Other features include AC/DC voltage, resistance, Type K thermometer, capacitance, and frequency. The kit includes test leads, a Type K temperature probe, a 9-volt battery, and a casing.
| AC Current | 0.1 to 1000A |
|---|---|
| AC Current Basic Accuracy | ±2.8% |
| AC Voltage | 0.1mV to 1000V |
| AC Voltage Basic Accuracy | ±1.5% |
| Capacitance | 0.001nF to 40,000ΩF |
| Continuity | Yes |
| DC Current | 0.1 to 1000A |
| DC Current Basic Accuracy | ±2.8% |
| DC Voltage | 0.1mV to 1000V |
| DC Voltage Basic Accuracy | ±2.8% |
| Diode Test | Yes |
| Frequency | 0.001kHz to 4kHz |
| Frequency Basic Accuracy | ±1.5% |
| Inrush Current | Yes |
| Jaw Size | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| Resistance | 0.1 to 40MΩ |
| Temperature (IR) Basic Accuracy | -58 to 518°F (-50 to 270°C) |
| Temperature (IR) Max Resolution | ±2.0% of reading or ±4°F/±2°C |
| Temperature (Type K) Max Resolution | -4 to 1400°F (-20 to 760°C) |
| Temperature (Type N) | ±(3% of reading + 9°F/5°C) |
| True RMS | Yes |
| Certifications | CE, ETL |
| Dimensions | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 1000V, CETIV- 600V |
| Warranty | 3 years |
| Weight | 13.6oz (386g) |
